Optional Configuration:

1. Standard hybrid;

2. CMY+CTO;

3. simple framing system(4 cutting sheets, 8 directions)

Technical Parameters:

Voltage: AC100V-240V 50/60Hz

LED source: 440W LED module high brightness

Power consumption: 680W

Light source life: 20000H

Beam Angle: 6°~30°

Signal control: DMX512, RDM

Channel: 26CH

Pan movement: 540 °(16bit), auto repositioning

Tilt movement: 270 °(16bit), auto repositioning

Color wheel: 7 + white

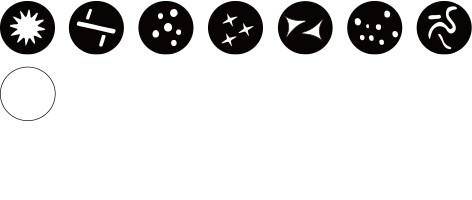

Rotating gobo wheel: 7 + white, bidirectional flow and shake effect

Prism: 3 prism, independent bidirectional rotation

Dimming: 0~100% linear dimming

Zoom: 3 sets of optical lens, quick linear

Strobe: 0 ~ 25 hz/s

Frost: indepedent frost len, 0~100% linear

Display: 2.8 inch LCD touch display, 180° reverse possible

Work temperature: -10℃~40℃, good ventilation

IP rated: IP20

Size: 396x289x694mm

N.W.: 25.6kg

1 Power Cable

1 User's Manual

•
